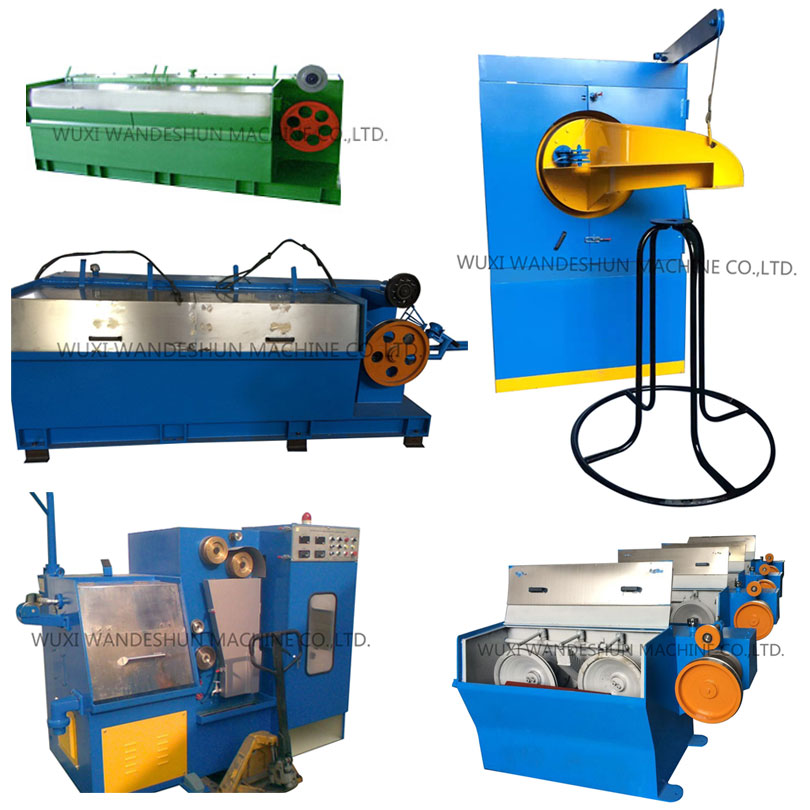

 LT9-450Copper Large Pull with continuous annealing production line
copper rod breakdown machine;rod breakdown machine;8mm copper rod dawing machine
From 8mm to 1.78mm—3.30mm
copper rod input diameter:8mm,
output diameter: 1.78mm—3.30mm
production speed:480meters/s
production capacity: 1200KG/hour
copper rod breakdown wire drawing machine (450/LT9)
number of dies:9
installed capacity:125KVA (Main motor:AC.110KW,spooler motor:15KW)
drive: frequency inverters
Dimension length 3000 * 1800mm Weight 6.5T width
This company produces LT9-450 continuous annealing line used with pull-plus double-disc received Continuous Annealing Line (or, as the nose unloading line) production model, the formation of the entire production line continuous operation, drawing machine from a copper rod into the line of direct pull 8.00mm Model copper wire.
Annealing mode DC-annealing, annealing the use of advanced low-voltage power supply high current power supply, the control system adopts microcomputer intelligent control, equipment operation more stable, the maximum speed of 8 m / sec.
| Wire drawing bench |
| parameters |
350water tank wire drawing |
450water tank wire drawing |
| Inlet diameter |
Φ3mm |
Φ8mm |
| Outlet diameter |
Φ0.8-Φ2.8mm |
Φ2.2-Φ3..3mm |
| Drawing speed |
400m/min |
380m/min |
| Main motor power |
AC 22Kw－37Kw |
DC 110Kw－160Kw |
| Take-up machine power |
Torque motor 20A 6P |
Torque motor 25A 6P |
| weight |
1000Kg |
6000Kg |
| Annealing machine |
| parameters |
TH－800 |
TH－1200 |
| Annealing wire diameter range |
0.8－2.8mm |
2.2－3.3mm |
| maximum speed |
380m/min (Φ2.0mm) |
360m/min (Φ2.5mm) |
| Annealing current |
1500A |
2000A |
| Annealing voltage |
50V |
50V |
| Annealing capacity |
60KVA |
100KVA |
Shape size
（long×width×height） |
1500×750×2000 |
1600×750×2000 | |
